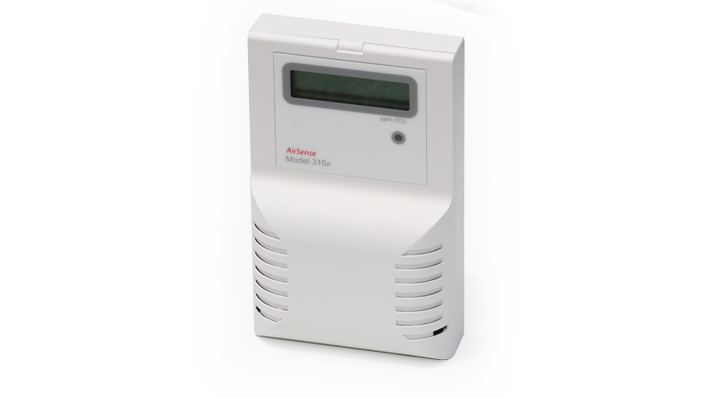

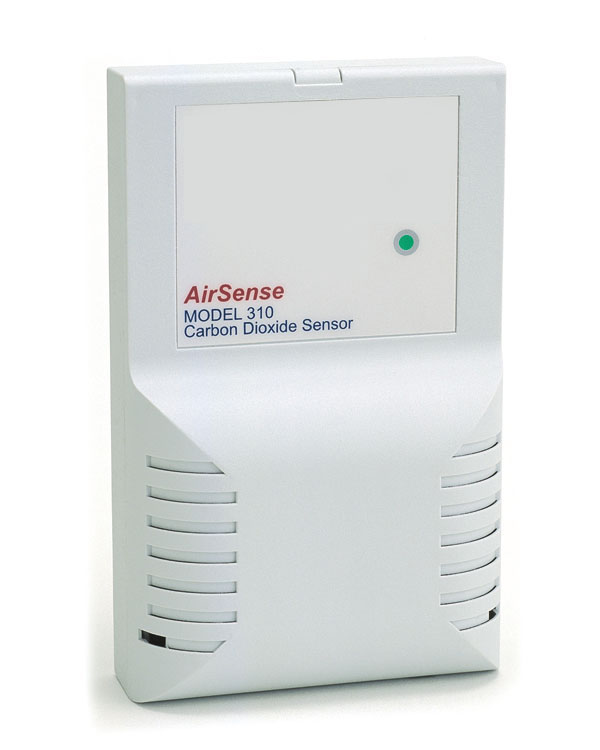

Model 310e and 310en

Dual Beam

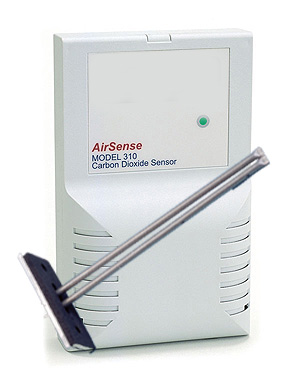

m310 no display duct.jpg (32686 bytes)

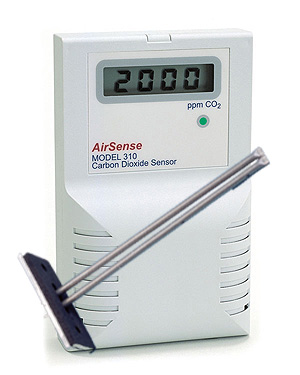

m310 duct.jpg (36754 bytes)
LCD display
no
yes
no
yes
Application location

wall / diffusion

wall / diffusion
duct
duct
Sample method
no
no
yes
yes
Diffusion method
yes
yes
no
no
Transformer
optional
optional
optional
optional
Duct kit
no
no
yes

yes
Relay
optional
optional
optional
optional


All AirSense CO2 sensor are equiped with Dual Beam Bullet-Proof Performance!

ThisAirSense™Model 310e CO2 sensor reads carbon dioxide concentrations in the parts per million (ppm) range, and is ideal for applications ranging from conference rooms to fitness gyms.

Fresh air contains 350-400 ppm CO2. Human respiration and combustion by-products from furnaces, fireplaces, and household appliances can easily raise indoor levels above 2000 ppm. With your AirSense™ Model 310e CO2 Monitor, you can watch CO2 levels rise as people enter a room.

    According to the National Institutes of Occupational Safety and Health, increased levels of CO2 may contribute to "Sick Building Syndrome" and symptoms such as hyperventilation, headache, dizziness, shortness of breath, and drowsiness. The AirSense™ Model 310e CO2 monitor provides a continuous, accurate reading of indoor CO2 levels, making it easy to maintain an optimum level of fresh air.

    The AirSense™ Model 310e carbon dioxide (CO2) meter is easy to install and support. Measurement output is via a 4 - 20mA current loop or a 0 to 10 volt interface. A completely isolated power supply eliminates any ground loop or electrical interaction problems when multiple units are connected to the same controller. Low power power consumption makes the AirSense™ line of CO2 Monitors perfect for battery-operated or other power-sensitive applications.

    The Model 310e’s single gas verification makes field calibration a snap, and its superior design means significantly longer calibration intervals. Unlike other CO2 Monitors, its simple user interface has no complicated menus: all maintenance and calibration operations are easily performed even on units with no display.

    This carbon dioxide monitor is a leader in cost-effective versatility.

.   The clear, bright 0.4" high liquid-crystal display option is readable from any angle for installations where local annunciation of the CO2 concentration is desired. For direct control applications, the relay option can be configured to open or close above the set point and is easily adjusted in the field. For plenum sampling requirements, the popular duct option is easy to install.

The high-performance AirSense™ Model 310e uses an advanced Non-Dispersive Infrared (NDIR) sensoring systems to assure quick and reliable CO2 response.



*(the Model310en is most easily identified by the prefix “M310en” on the unit’s serial number tag visible on the sensor circuit board when the cover is removed.)

Specifications

Operating Principle

Non-dispersive infrared (NDIR)

Gas sampling method

Diffusion or duct sampling (through available duct kit)

Measurement Range

0 - 5000 ppm CO2 (0-2000 ppm is factory default range)

Meaurement accuracy

± 5% of reading or ± 75 ppm

Repeatability

± 20 ppm

Recommended calibration interval

5 Years

Warm up time

Less than 1 minute

Operating temperature range

0 - 50 ° C

Operating humidity range

5 - 90% RH, (non condensing)

Storage temperature

-30 to + 60 ° C

Power requirements

18 - 28VRMS AC, 18 - 30 VDC

Power consumption

Less than 1 watt

Calibration adjustments

Span only (offset electronically nulled)

Calibration verification procedure time

10 minutes typical

Case dimensions

5.2" x 3.2" x 1.4"

Voltage output (linear)

0 - 10VDC full scale standard.
Range field-adjustable from 1-10VDC

Current output (linear)

4 - 20mA (RLOOP: 400 W maximum)

Warm up time

Less than 1 minute

Weight

12 Oz. (.35 Kg)

Optional Digital Display

4-digit, .35" LCD

Optional

setpoint range

0 to 2000 ppm

High Limit

contact polarity

jumper selectable

Contact

contact rating

2A @ 24VAC

Operating life expectancy

10 years typical

Warranty

One year, parts and labor through repair or exchange
